Valve stem seals

Valve Stem Seal Replacement – A Key Step in Reducing Oil Consumption

Excessive engine oil consumption can be caused by many factors, and one of the most common is the wear of valve stem seals. In this article, we will discuss what valve stem seals are, what symptoms indicate their wear, and how the replacement process works.

The Role of Valve Stem Seals in the Engine

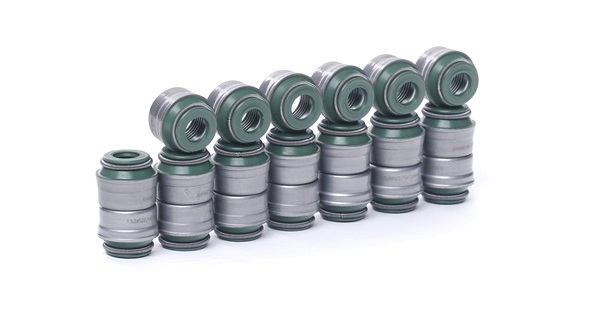

Valve stem seals are small components made of rubber or elastomers, located on the valve guides. Their job is to limit the amount of oil that enters the combustion chamber. Properly functioning valve stem seals ensure:

  • Proper lubrication of the valve stems.
  • Minimization of oil entering the cylinders.
  • Longer lifespan of the valves and valve seats.

Symptoms of Worn Valve Stem Seals

Worn valve stem seals can manifest in several ways. Here are the most common signs of the problem:

  • Increased oil consumption – the engine may burn large amounts of oil, requiring frequent top-ups.
  • Blue smoke from the exhaust – especially noticeable during engine start-up or after a long period of inactivity.
  • Compression loss – can lead to power issues and uneven engine operation.
  • Contaminated spark plugs – oil deposits on the spark plugs may indicate oil burning in the combustion chamber.
  • Unpleasant smell of burnt oil – may be noticeable especially when driving or operating the engine at high revs.

How to Check the Condition of Valve Stem Seals?

To check whether the valve stem seals are worn, you can perform several tests:

  • Observe exhaust smoke – if blue smoke appears after starting the engine, it could indicate an issue with the seals.
  • Inspect spark plugs – oil deposits on the electrodes indicate that oil is entering the combustion chamber.
  • Compression measurement and leak test – if the differences between cylinders are significant, it may indicate a leak in the valve system.

How to Replace Valve Stem Seals?

Replacing valve stem seals is a precise process that requires the right tools. In many engines, it can be done without removing the cylinder head, but in some cases, it is necessary to remove the head.

Tools Needed for Replacement:

  • Torque wrench.
  • Valve spring compressor.
  • Compressed air to keep the valves closed.
  • New valve stem seals.
  • Sealant paste (optional).

Steps for Replacing Valve Stem Seals:

  • Remove the valve cover – remove the valve cover to access the camshaft and valves.
  • Set the piston to top dead center (TDC) – prevents the valve from falling into the cylinder.
  • Use compressed air – inject air into the cylinder to keep the valves in place.
  • Remove the valve springs – use the spring compressor to release the valve locks.
  • Remove the worn valve stem seals – carefully remove the old seals with pliers.
  • Install new valve stem seals – lubricate them with a thin layer of oil and install them on the valve guides.
  • Reassemble the springs and locks – ensure all components are securely in place.
  • Reinstall the valve cover – after completing the work, reinstall the valve cover and torque it according to the manufacturer’s specification.

Cost of Valve Stem Seal Replacement

The cost of replacement depends on the car model and whether it can be done without removing the cylinder head. Average costs are as follows:

  • DIY replacement – the cost of new valve stem seals ranges from 15 to 40 EUR, and tools can be rented.
  • Mechanical service – prices range from 200 to 1000 EUR depending on the complexity of the repair.

Summary

Replacing valve stem seals is an important part of engine maintenance that can significantly reduce oil consumption. Regular checks and prompt responses to signs of wear will help prevent more serious engine damage and expensive repairs. If your car starts burning excessive amounts of oil and blue smoke is coming from the exhaust, it’s worth considering replacing the valve stem seals.
